Enable the Endicia Shipping Labels module to print USPS shipping labels with postage included. If the Endicia module is not enabled, USPS labels will be generated as address-only labels and will not include postage.
Note: Endicia has transitioned to the Stamps.com interface. You can continue using your existing Endicia account credentials and features without any additional setup.
To Enable the Endicia Module
Go to PATH: Settings > Modules > Search Endicia
Click Install under Endicia Shipping Labels. The Page opens to the new Endicia tab in Shipping Settings.
Create an Endicia Account
To create an account scroll to the bottom of the Endicia Shipping Labels page. Click the link for "Sign up for an ELS Production account here" this takes you to the Stamps.com Registration page where you can create an account. Note: Endicia was acquired by Stamps.com.
Configure the Endicia in Miva

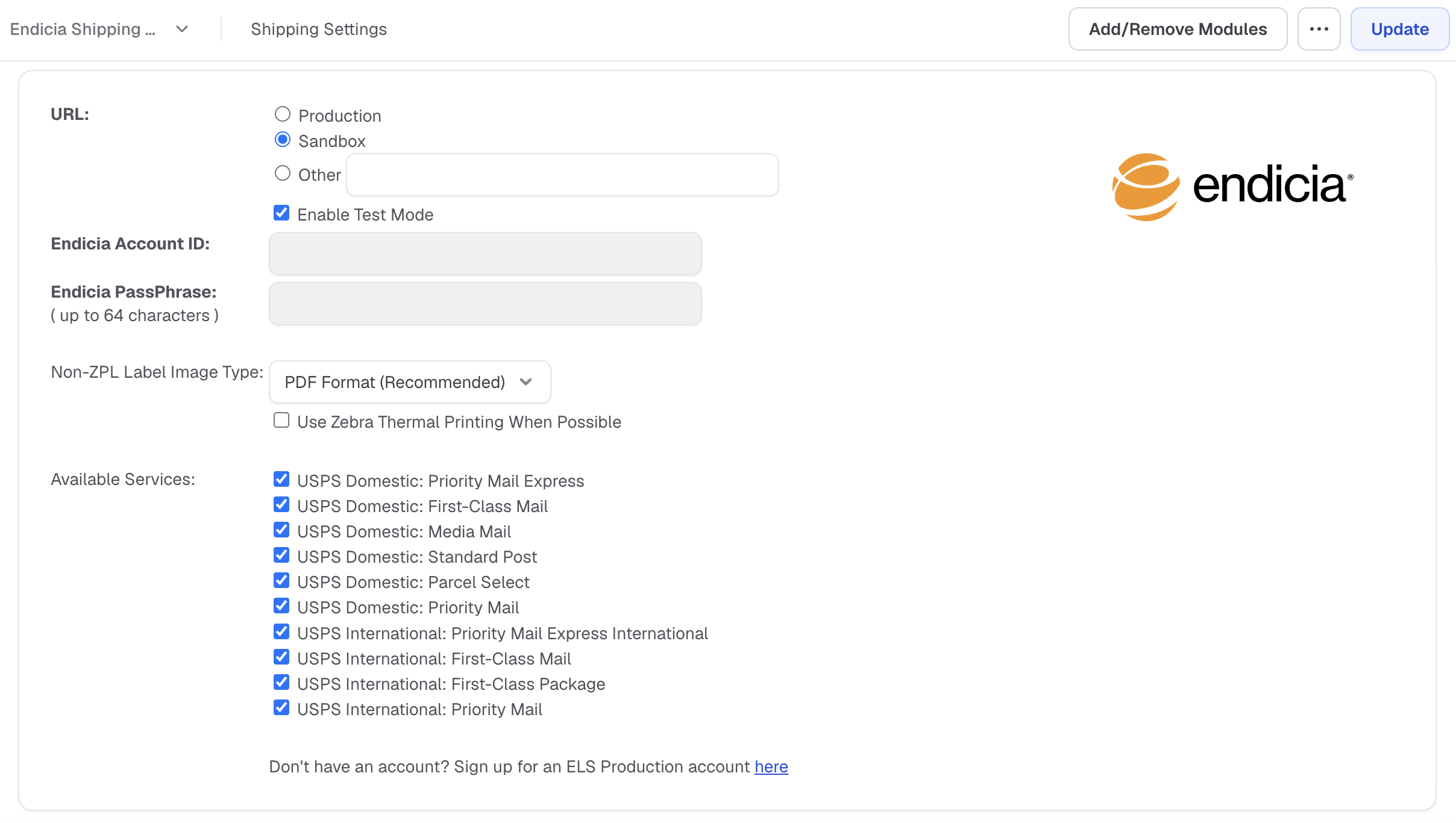

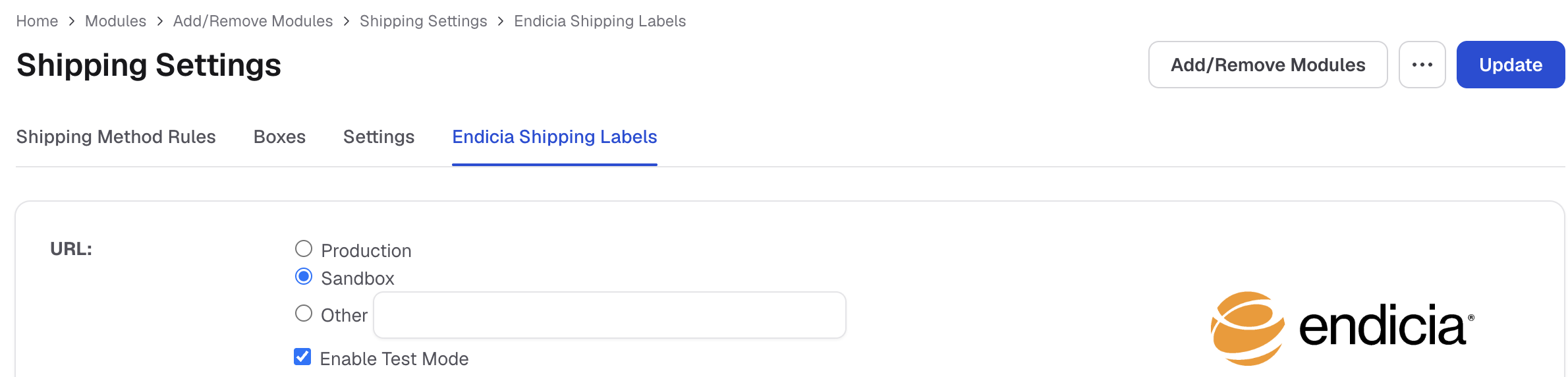

- Select the Endicia Shipping Label Settings tab.
- Configure the options shown below.
- Click Update .
URL:
Select from the following list to configure how Miva connects to Endicia’s API. Note: These correspond to Endicia API endpoints, not normal website URLs.
- SandBox: This option will print sample labels, it connects to Endicia’s test environment Generates sample / non-billable labels Used for testing setup.
- Production: Use this option to print real labels that will be billed to your Endicia account.
- Other: Lets you manually enter a custom API endpoint. It is rarely used (typically only for legacy or special setups)
- Enable Test Mode: When enabled, Miva treats label generation as test requests. It is typically used alongside Sandbox, but may also affect how requests are flagged internally
In practice most users either use Sandbox + Test Mode for testing and Production (Test Mode off) for live shipping.
Endicia Account ID
Enter your Endicia account number.
Endicia PassPhrase/Change Passphrase
Enter the passphrase that you created during account creation. After you've entered your account information a "change passphrase" link will appear.
Non-ZPL Label Image Type
Select the image format used when generating non-ZPL shipping labels.
- GIF: A basic image format with limited colors; suitable for simple labels but less commonly used.
- JPEG: A compressed image format that produces smaller file sizes, but may reduce label clarity.
- PDF: A document format ideal for printing; preserves layout and quality for consistent label output.
- PNG: A high-quality image format with no compression loss; recommended for clear, detailed labels.
NOTE: Use Zebra Thermal Printing When Possible: PR8 Update 8 added the ability to print adhesive backed labels using a Zebra or Zebra compatible printer. A Zebra compatible printer can be used with Endicia, FedEx, UPS, and Canada Post, but currently not with the USPS.
Requirements:
- Your browser must have Java enabled. See http://java.com/en/download/help/enable_browser.xml.
- You must have a Zebra or Zebra compatible printer that can print .zpl.
- Your store must be running PR8 Update 8 or later.
For some shipping destinations, Endicia may not generate labels compatible with Zebra (ZPL) printers. If Use Zebra Thermal Printing is enabled, you should also select a fallback format in Non-ZPL Label Image Type (typically PDF).
Miva automatically checks each label returned by Endicia. If the label is ZPL-compatible, it will print to your Zebra printer. If it is not, the label will be generated using the selected fallback format.
Available services
Select which USPS services can be used when printing labels with Endicia. If a service is unchecked, labels for that service cannot be generated.
This setting does not affect which shipping methods are offered to customers during checkout. To manage checkout shipping options, see the USPS Online Rate Calculation module in Shipping Settings.
Account Postage
Shows your Endicia account status.
Recredit Account
Click the link and enter an amount to add funds to your Endicia account. The specified amount will be charged to the credit card on file with Endicia.
Miva Merchant does not store or have access to your credit card information.
